Bench Vise Grip
Project Overview
The objective was to design and fabricate a durable, versatile bench vise grip capable of securely holding a wide range of workpieces during mechanical, woodworking, and prototyping operations. The vise is intended to be a core fixture in workshops, providing stability, precision, and safety for tasks such as cutting, drilling, grinding, filing, and assembly.

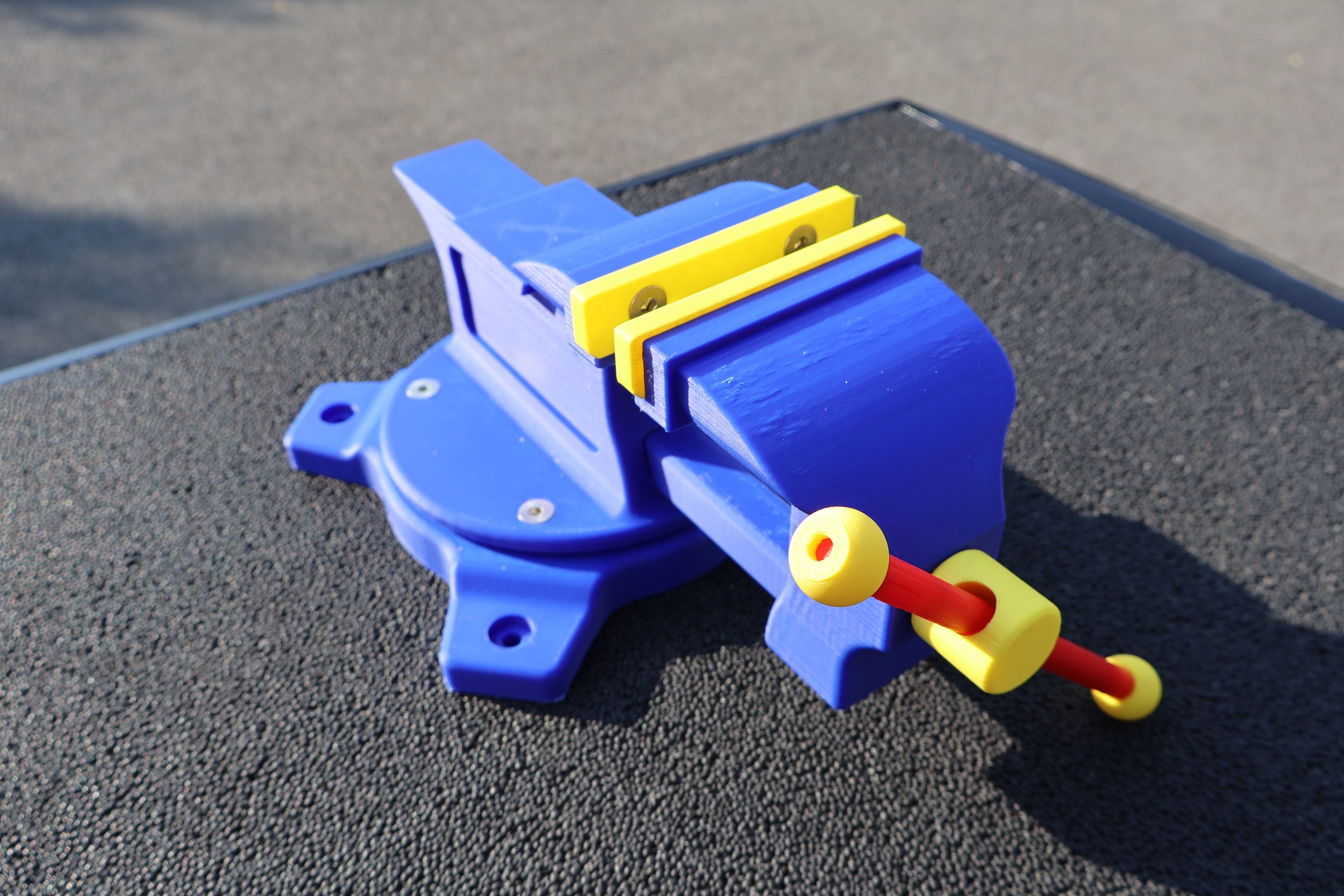

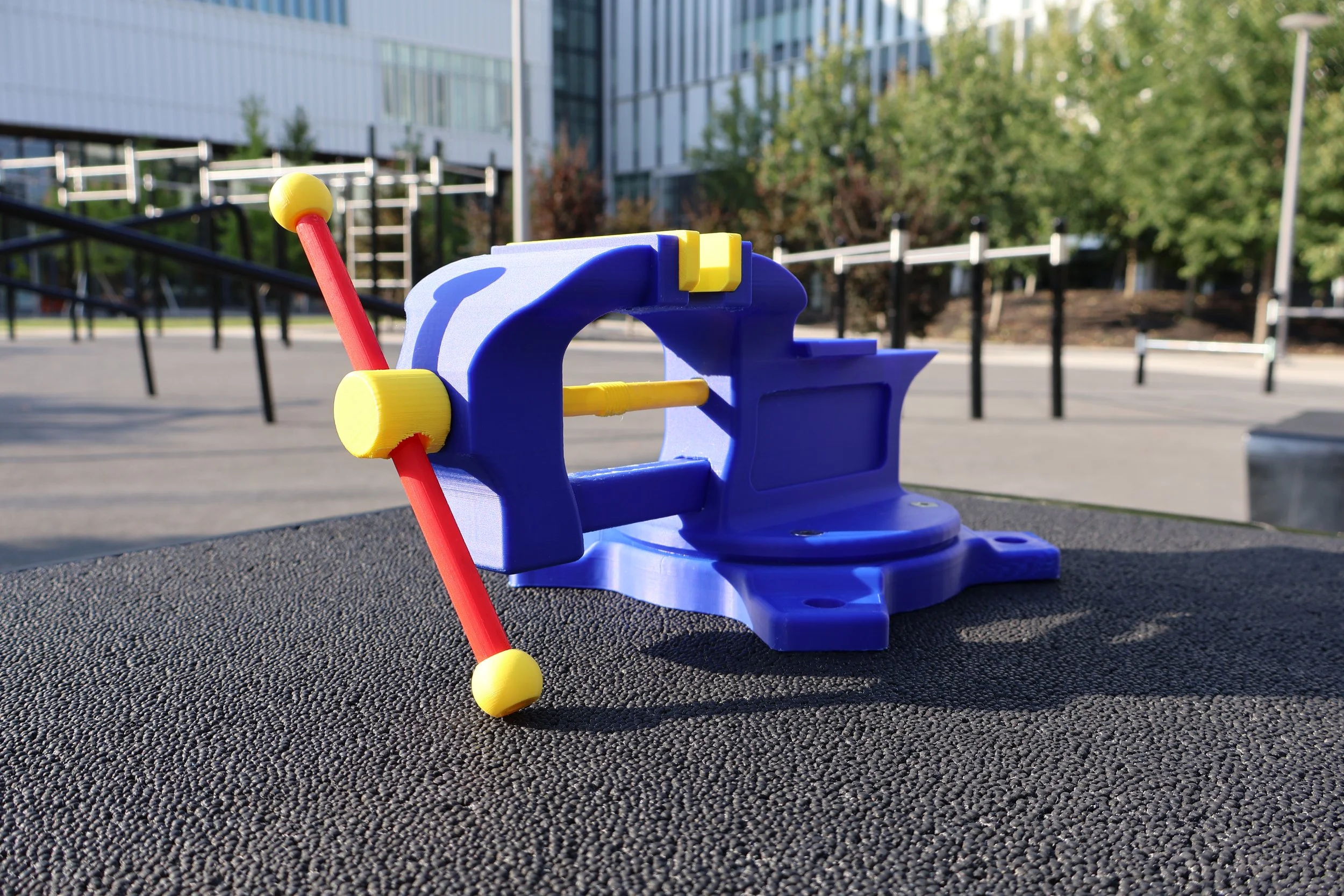

The bench vise grip features a rotating base, dual jaws with protective inserts, and a manual clamping mechanism. It is optimized for both light-duty and heavy-duty applications, with a focus on ergonomic operation and material protection.
Design Highlights

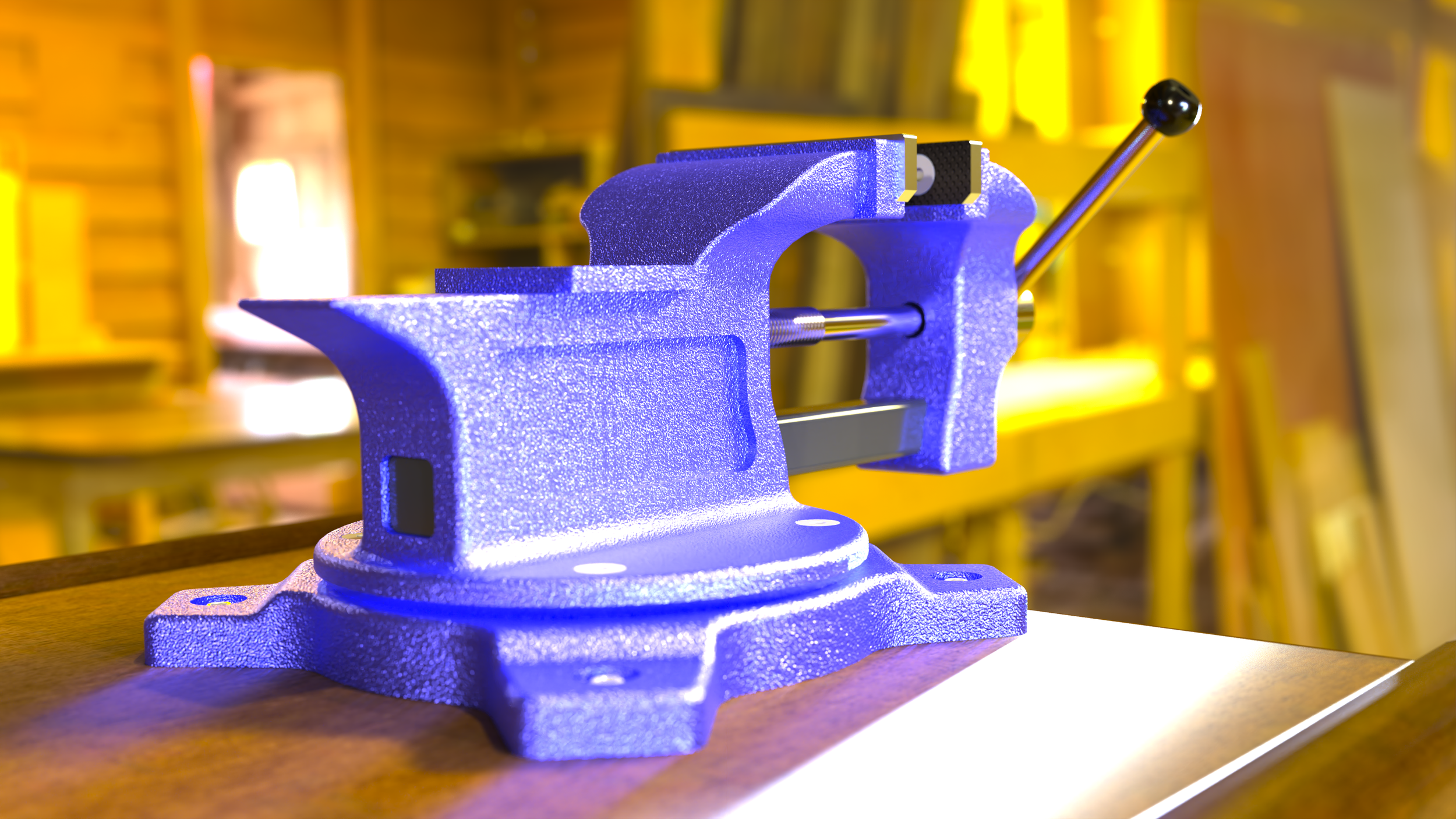

Rotating Base
Material: Cast iron or steel alloy for strength and vibration damping.
Functionality: Allows 360° rotation for flexible positioning of the workpiece.
Jaws
Configuration: One fixed jaw and one movable jaw.
Jaw Width & Opening: Designed to accommodate a range of part sizes, from small components to medium-sized assemblies.
Clamping Mechanism
Handle: Chrome-plated steel rod with knobs for grip and torque control.
Threaded Screw: Precision-machined for smooth operation and consistent clamping force.
Safety Stops: Prevent over-tightening and protect internal threads.
Main Body
Construction: Solid metal frame (painted blue for corrosion resistance and visibility).
Design Considerations: Compact footprint to save workspace.
