Weldments

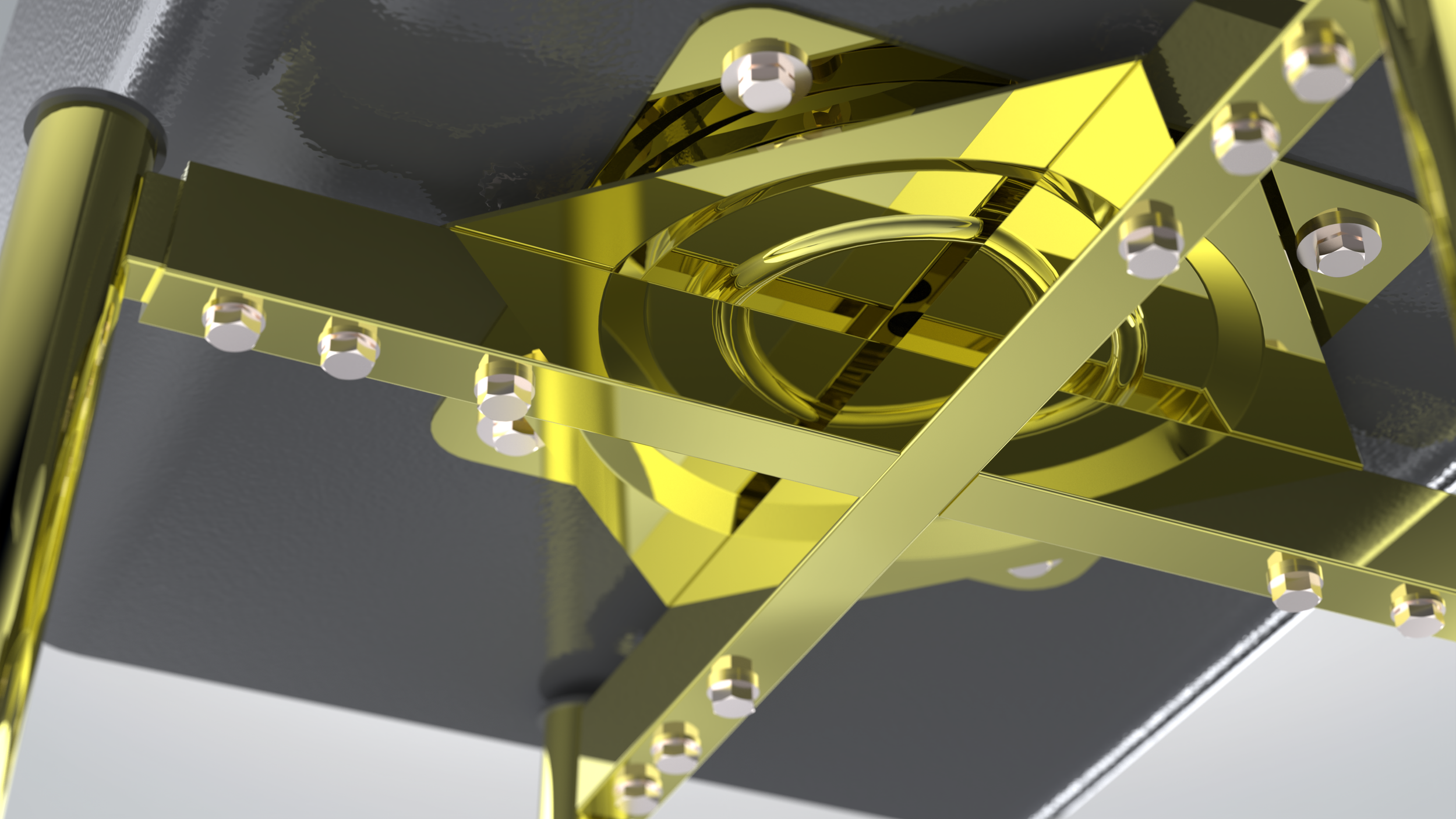

A close-up of a mechanical component with metallic gold and black parts, featuring bolts and ring-shaped structures.

Design for Welded Assemblies

FormaSharp specializes in designing robust welded structures using SolidWorks Weldments and advanced CAD workflows. From machine frames and support brackets to custom metal fabrications, we create assemblies that are optimized for strength, manufacturability, and cost-efficiency. Our models include accurate profiles, cut lists, and weld-ready geometry tailored for fabrication shops.

CAD-Driven Welded Assemblies Built for Strength, Simplicity & Standards

Close-up of a metal weld joint with a smooth, shiny weld bead connecting two metal pieces.

Weld Joint Design

We’re fluent in the language of welds. Our team designs with a range of joint types including:

  • Fillet welds

  • Bevel groove welds

  • Plug and slot welds

  • Edge and corner joints

Code-Compliant Detailing

FormaSharp integrates welding codes and standards directly into our design process by working with you. We’re familiar with:

  • AWS D1.1 for structural steel

  • AWS D1.3 for sheet steel

Our drawings include proper weld symbols, callouts, and notes that align with inspection and fabrication requirements, ensuring your project meets regulatory expectations.

Applications Across Industries

Close-up of a bright orange metal frame with bolts and a black wheel, part of a piece of playground or gym equipment.

FormaSharp’s weldment designs may be used in:

  • Industrial automation

  • Agricultural equipment

  • Construction and infrastructure

  • Custom metal fabrication
